首页 > Home > Application Notes > QSFP-40G-CSR to view optical module information on H3C S6850-56HF switchQSFP-40G-CSR to view optical module information on H3C S6850-56HF switch
Time: 2024-07-10
H3C has a QSFP-40G-CSR optical module, model number is QSFP-40G-CSR-MM850, which can be used normally on H3C S6850-56HF switch. Today, we would like to introduce you the way to view the information of this model optical module on H3C S6850-56HF switch.

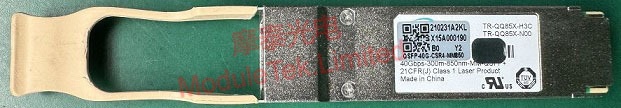

Figure 1 H3C QSFP-40G-CSR-MM850 Optical Module
1. Link status of H3C QSFP-40G-CSR-MM850 optical module on H3C S6850-56HF switch.
Enter the command "display interface HundredGigE 1/0/29" to view the link information of the switch port (port number: 1/0/29) into which the optical module is inserted, mainly including the link status of the optical module inserted in the port, the working rate, and so on.

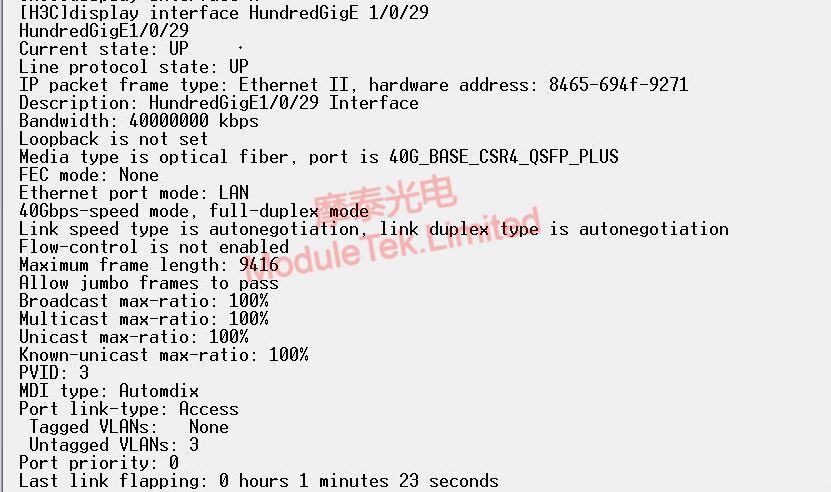

Figure 2 Link Status of H3C QSFP-40G-CSR-MM850 Optical Module on H3C S6850-56HF Switch
2. Identification information of H3C QSFP-40G-CSR-MM850 optical module on H3C S6850-56HF switch.
Enter the command "display transceiver interface HundredGigE 1/0/29" to view the identification information on the switch port (port number: 1/0/29) into which the optical module is inserted, mainly including: the H3C model of the optical module inserted in the port, the type of fiber connector, the transmission distance, the operating wavelength, and the connection status. The main information includes: H3C model of the optical module inserted in the port, fiber connector type, transmission distance, working wavelength, etc.

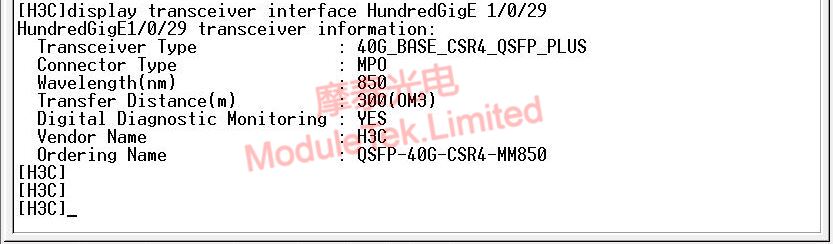

Figure 3 Identification information of H3C QSFP-40G-CSR-MM850 optical module on H3C S6850-56HF switch
3. DOM information of H3C QSFP-40G-CSR-MM850 optical module on H3C S6850-56HF switch.
Enter the command "display transceiver diagnosis interface HundredGigE 1/0/29" to view the DOM information on the switch port (port number: 1/0/29) where the optical module is plugged in, which mainly includes: temperature, voltage, bias current, transmitter current, and transmitter current when the module is working. The DOM real-time values of the module's operating temperature, voltage, bias current, transmit optical power, receive optical power, and so on.

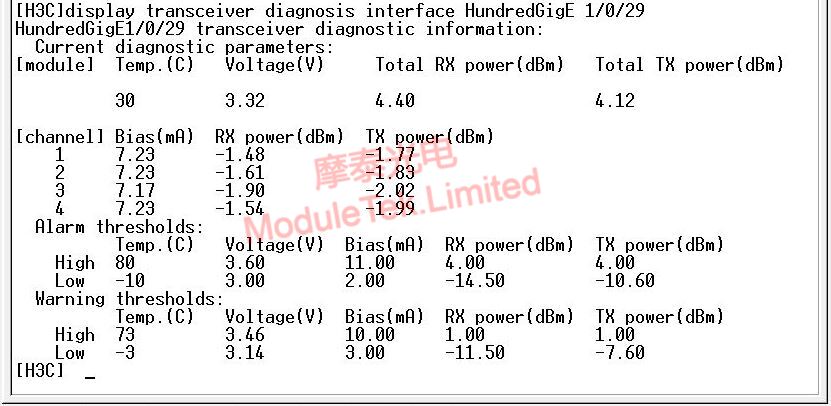

Figure 4 DOM information of H3C QSFP-40G-CSR-MM850 optical module on H3C S6850-56HF switch
Moduletek Limited can provide compatible H3C QSFP-40G-CSR-MM850 optical module products.
If you have any questions about the above content, you can contact us by Email : web@moduletek.com
