JUNIPER JNP-SFP-25G-SR Optical Module sample report

Time: 2024-01-03

      JUNIPER has model JNP-SFP-25G-SR/740-068639 optical module products, can support 25G Ethernet transmission 100M in multimode fiber, Motek Optoelectronics Laboratory of the product samples for testing, to facilitate a further understanding of the product's performance indicators and the effect of the actual machine use.
1. Product Description
      JUNIPER JNP-SFP-25G-SR optical module supports 100M link length on 25G standard multimode fiber (MMF) 50/125um with FEC negotiation enabled by the host. The official key parameter information and the physical appearance of the module are as follows:

Table 1 Official key parameters of JUNIPER JNP-SFP-25G-SR optical module

Part Number 740-068639
Speed 25 Gigabit Ethernet
Product Type Optical Transceiver
Transmitter wavelengths ( range ) 840 nm to 860 nm
Transmitter output power , each lane ( minimum ) -8.4 dBm
Transmitter output power , each lane ( maximum ) 2.4 dBm
Receiver input power , each lane ( minimum ) -10.3 dBm
Receiver input power , each lane ( maximum ) 2.4 dBm
Cable type MMF
Core size / cladding 50/125 μm
Fiber grade OM3                           OM4
Effective modal bandwidth 2000 MHz x km         4700 MHz x km
Distance 70 m                           100 m
Maximum Power consumption ( W ) 1.5 W

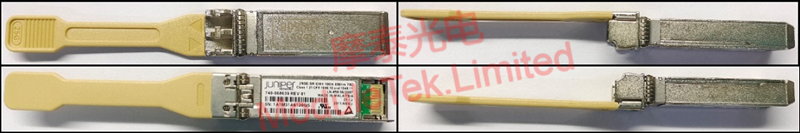

JUNIPER JNP-SFP-25G-SR optical module physical appearance

Figure 1 JUNIPER JNP-SFP-25G-SR optical module physical appearance

2. Module identification
      Connect the JNP-SFP-25G-SR module to JUNIPER QFX5200-48Y switch, access the patch cord, the module can be normal LINK, the port indicator lights up; module information can be recognized by the switch, such as the module type, vendor model number, etc.; you can read the DOM data, and the DOM data are within the threshold range, there is no alarm phenomenon.

Table 2 JUNIPER JNP-SFP-25G-SR Optical Module Recognized by the Switch

Item  Switch reading information
LINK

Identify

DOM data


3. Module key parameters testing
      a. The performance index of JNP-SFP-25G-SR sample module on the test plate is tested under 45℃ in the laboratory module shell, and the test results are as follows;

Table 3 JUNIPER JNP-SFP-25G-SR optical module performance indicators

  Parameter

Test data

Unit

Remarks

  Transmit optical power

-1.15

dBm



  Receiving sensitivity (without fiber)

-13.9

dBm

5E-5 BER

  Receive sensitivity (over 100m OM4 fiber)

-11.2

dBm

5E-5 BER

  Power consumption

0.831

W




      b. Sample module enclosure 45°C optical eye diagram test with the following eye diagram template and parameters:

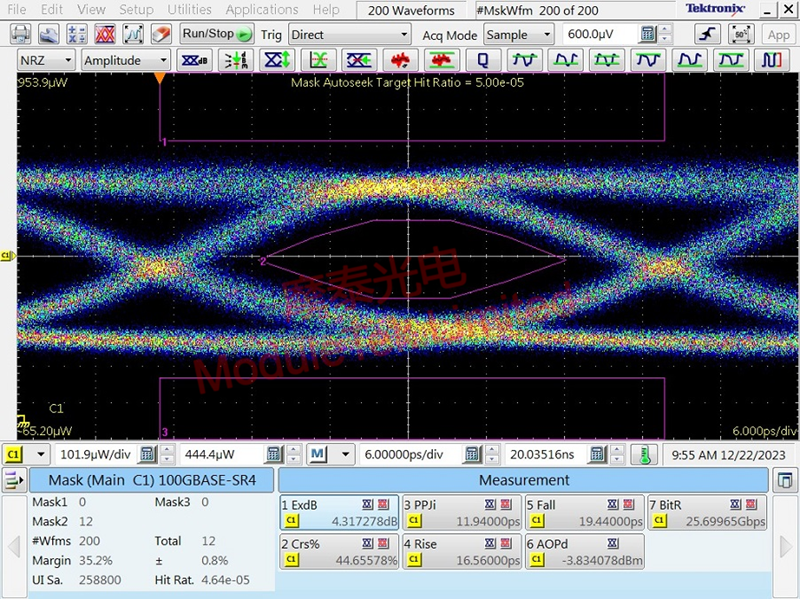

JUNIPER JNP-SFP-25G-SR Optical Module Eye Diagrams

Figure 2 JUNIPER JNP-SFP-25G-SR Optical Module Eye Diagrams


Table 4 JUNIPER JNP-SFP-25G-SR Optical Module Eye Diagram Parameters

Temperature (°C)

Extinction ratio (dB)

P-P jitter (ps)

Rise time (ps)

Down time (ps)

Margin value (%)

45

4.32

11.94

16.56

19.44

35.2


      From the actual test situation, the key parameters of the module are in line with the official claims of JUNIPER.
