CISCO SFP-25G-SL Optical Module sample report

Time: 2024-01-03
      CISCO has model SFP-25G-SL optical module products, can support 25G Ethernet transmission 30M in multi-mode fiber, Moduletek Limited Laboratory of the product samples for testing, to facilitate a further understanding of the product's performance indicators and the effect of the actual machine use.
1. Product Description
      CISCO SFP-25G-SL optical module supports 20/30M link length on OM3/OM4; the module requires FEC mode of RS-FEC on the host port. the official key parameter information and the physical appearance of the module are as follows:
                                                     Cisco SFP -25G- SL
                                                     The Cisco 25GBASE- SL Module supports a link length of 20/30m on OM3/4 MMF .
                                                     The Cisco SFP -25G- SL ( Short Link ) module requlres RS - FEC on the host ports
Table 1 CISCO SFP-25G-SL Optical Module Key Parameters
Product Max Power
Consumption ( W )		 Transmit Power ( dBm )* Receive Power ( dBm )* Transmit and Receive Wavelength ( nm )
Maximum Minimum Maximum Minimum
SFP -25G- SL 1.2 2.4 -8.4 2.4 -10.3 840 to 860

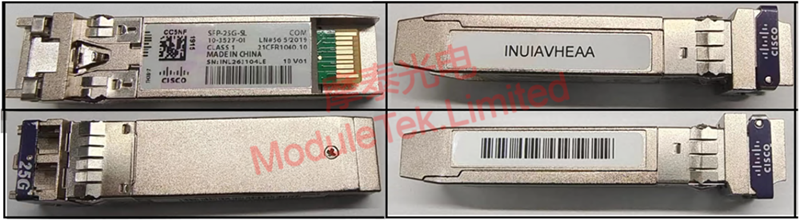

Physical appearance of CISCO SFP-25G-SL optical module
Figure 1 Physical appearance of CISCO SFP-25G-SL optical module
2. Module on-board identification
      Connect the SFP-25G-SL module to CISCO N9K-C93180YC-EX switch, access the patch cord, the module can be normally LINK, the port indicator lights up; module information can be normally recognized by the switch, such as the module type, vendor name, model number, serial number, rate, transmission distance, etc.; you can read the DOM data, and the DOM data are all within the threshold range, no alarm phenomenon. alarm phenomenon.
Table 2 CISCO SFP-25G-SL Optical Module Upload Recognition
Item  Switch reading information
LINK

 Identify

 DOM Data

FEC mode



3. Module key parameters testing
      The performance indicators of the SFP-25G-SL sample module on the test board are tested in the laboratory module enclosure at 45°C, and the test results are as follows;
Table 3 CISCO SFP-25G-SL optical module
Parameters
Test data
Unit
Remarks
Transmit optical power
-0.5
dBm

Receiving sensitivity (without fiber)
-13.7
dBm
5E-5 BER
Receive sensitivity (over 30m OM4 fiber)
-13.1
dBm
5E-5 BER
Power consumption
0.731
W


      The sample module enclosure was tested at 45°C optical eye diagram with the following eye diagram template and parameters:
CISCO SFP-25G-SL Optical Module Eye Diagrams
Figure 2 CISCO SFP-25G-SL Optical Module Eye Diagrams

Table 4 CISCO SFP-25G-SL Optical Module Eye Diagram Parameters
Temperature (°C)
Extinction ratio (dB)
P-P jitter (ps)
Rise time (ps)
Fall time (ps)
Margin value (%)
45
4.16
11.82
15.90
17.82
41.9

      From the actual test situation, the module's key parameters and indexes are in line with CISCO's official claims.
      Moduletek Limited is at your service.
      If you have any questions about the above content, you can contact us by Email : web@moduletek.com
