Brocade launched a SFP-FC16G-SW Fibre Channel module, model number: 57-0000088-01, today to introduce you to the Brocade G610 switch to view the information of this model optical module.
Figure 1 Brocade 57-0000088-01 Optical Module
Brocade 57-0000088-01 optical module supports 16G, 8G, and 4G working rates, so it is displayed under the port rates of 16G, 8G, and 4G respectively.
1. Status of Brocade 57-0000088-01 Optical Module on Brocade G610 Switch
If the port rate is set to 16G, enter the command "diagshow" to view the information of the switch port where the optical module is inserted, mainly including the Link status of the optical module inserted in the port, the working rate and so on.

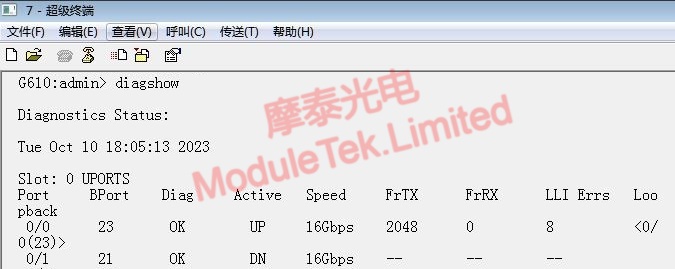

Figure 2 Port rate is 16G, Brocade 57-0000088-01 Optical Module Link status on Brocade G610 switch
With the port rate set to 8G, enter the command "diagshow" to view the information of the switch port where the optical module is plugged in, mainly including the link status of the optical module plugged in the port, the working rate, etc.

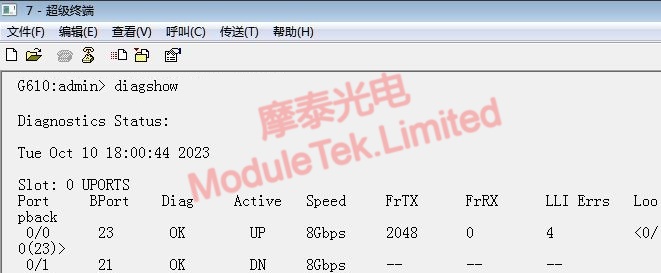

Figure 3 Port rate is 8G, Brocade 57-0000088-01 Optical Module Link status on Brocade G610 switch
If the port rate is set to 4G, enter the command "diagshow" to view the information of the switch port where the optical module is plugged in, mainly including the link status of the optical module plugged in the port, working rate and so on.

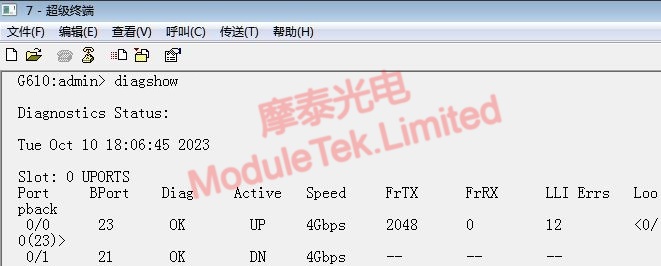

Figure 4 Port rate is 4G, Brocade 57-0000088-01 Optical Module Link Status on Brocade G610 Switch
Note: The Brocade G610 switch port rate setting commands are as follows:
switchcfgspeed 16 (sets the port to 16G)
switchcfgspeed 8 (sets the port to 8G)
switchcfgspeed 4 (sets the port to 4G
2. Brocade 57-0000088-01 Optical Module on Brocade G610 Switch Identification and DOM Information
With the port rate set to 16G, enter the command "sfpshow 0/0" to view the identification and DOM information of the switch port (port number: 0/0) where the optical module is plugged in, mainly including: Brocade model number of the optical module plugged in the port, serial number, power-on time, temperature, voltage, bias current, transmit optical power, receive optical power, DOM information of the optical module. power, DOM real-time value of received optical power, etc.

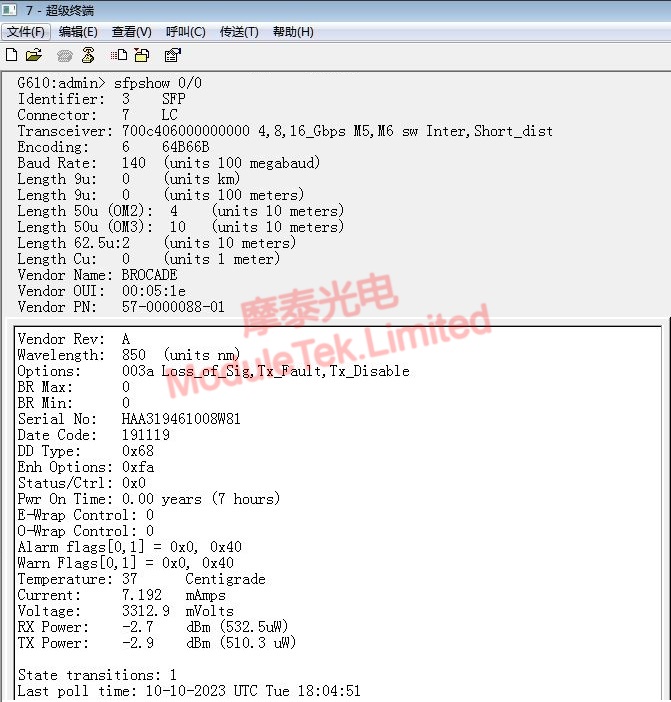

Figure 5 Port Rate 16G, Brocade 57-0000088-01 Optical Module Identification and DOM Information on Brocade G610 Switch
With the port rate set to 8G, enter the command "sfpshow 0/0" to view the identification and DOM information of the switch port (port number: 0/0) where the optical module is plugged in, mainly including: Brocade model number of the optical module plugged in the port, serial number, power-on time, temperature, voltage, bias current, transmit optical power, receive optical power, DOM value of the optical module. power, DOM real-time value of received optical power, etc.

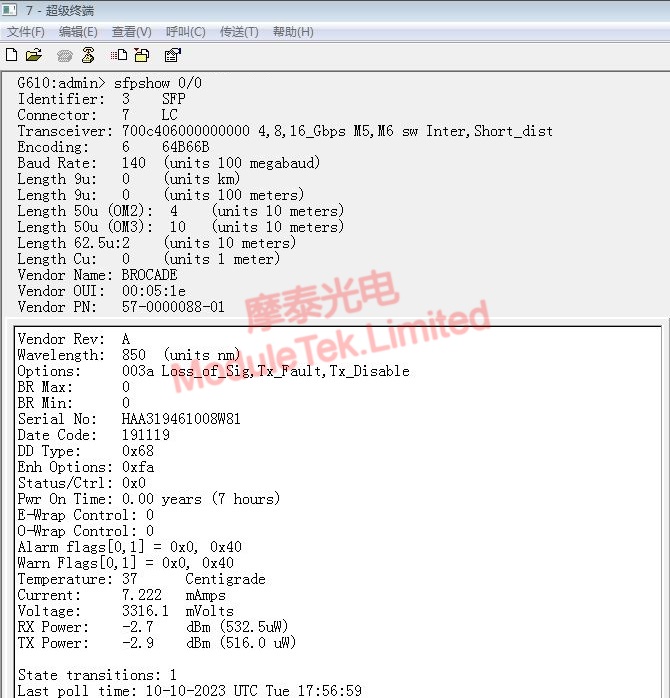

Figure 6 Port rate is 8G, Brocade 57-0000088-01 Optical Module on Brocade G610 switch identification and DOM information
With the port rate set to 4G, enter the command "sfpshow 0/0" to view the identification and DOM information of the switch port (port number: 0/0) where the optical module is plugged in, mainly including: Brocade model number of the optical module plugged in the port, serial number, power-on time, temperature, voltage, bias current, transmit optical power, receive optical power, DOM value of the optical module. power, DOM real-time value of received optical power, etc.
Figure 7 Port rate of 4G, Brocade 57-0000088-01 optical module on Brocade G610 switch identification and DOM information
Moduletek Limited can provide compatible Brocade 57-0000088-01 (SFP-FC16G-SW) optical module products, welcome to buy.
If you have any questions about the above content, you can contact us by Email : web@moduletek.com
