首页 > Home > Application Notes > Moduletek Limited SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 Optical Module Sample Performance EvaluationModuletek Limited SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 Optical Module Sample Performance Evaluation
Time: 2024-11-12
SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 optical module product of Moduletek Limitedcan support 10G Ethernet transmission 20km in single-mode fiber, Moduletek Limited laboratory tested the product samples, which is convenient for you to further understand the product's performance indexes and the effect of actual machine use.
1. Product Description
SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 optical module supports 20km link length on 10G standard single-mode fiber (SMF) G.652, and supports industrial temperature range (-40～85℃), the official ordering information and the appearance of the module are as follows:

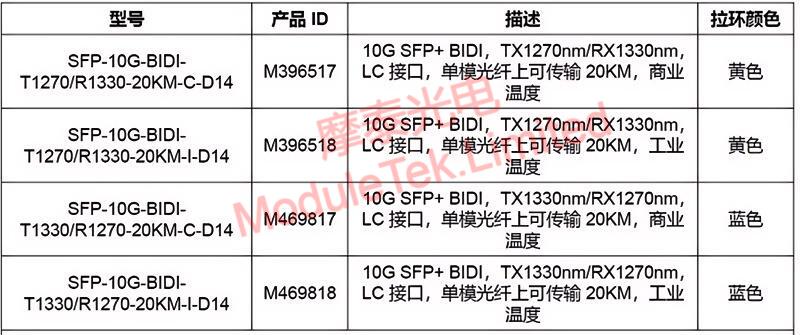

Figure 1 SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 Optical Module Official Ordering Information

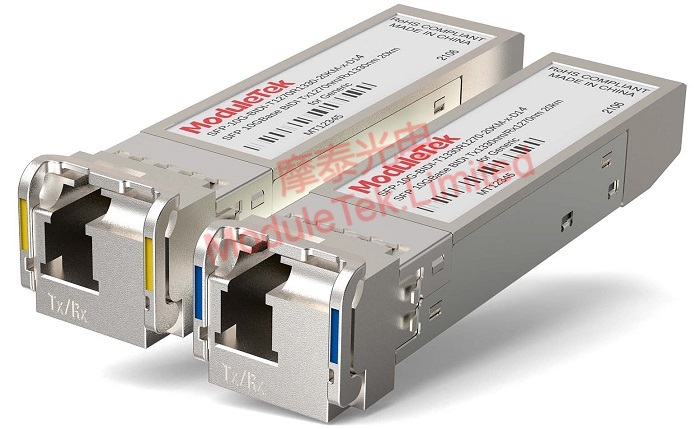

Figure 2 SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 Optical Module Appearance
2. Module identification
The SFP-10G-BIDI-T1270/R1330-20KM-I-D14 and SFP-10G-BIDI-T1330/R1270-20KM-I-D14 modules are paired with 1 meter optical fiber and inserted into CISCO N9K-C93180YC-EX switches, and the modules can be LINKed normally, and the port indicator lights up; Module information can be recognized normally by the switch, such as module type, vendor name, model number, serial number, rate, transmission distance, etc.; DOM data can be read, and the DOM data are all within the threshold range without alarm.
Table 1 SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 Optical Module Superior Recognition
| Item | Switch read information |
| LINK |
|
|
Identify |
|
| DOM data |
|
3. Module Key Parameter Test
Take the SFP-10G-BIDI-T1270/R1330-20KM-I-D14 sample module as an example, the performance indexes on the test board are tested at three temperatures, and the test results are as follows;
Table 2 Key parameters of SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 optical module
|
Shell test temperature (℃) |
Transmitted optical power (dBm) |
Receive sensitivity (dBm, BER=1E-12) |
Power Consumption (W) |
| -40 | -2.1 | -16.0 | 0.60 |
| 30 | -2.2 | -16.0 | 0.85 |
| 85 | -2.4 | -15.0 | 1.12 |
Sample module shell 85℃ optical eye diagram test, eye diagram template and parameters are as follows:

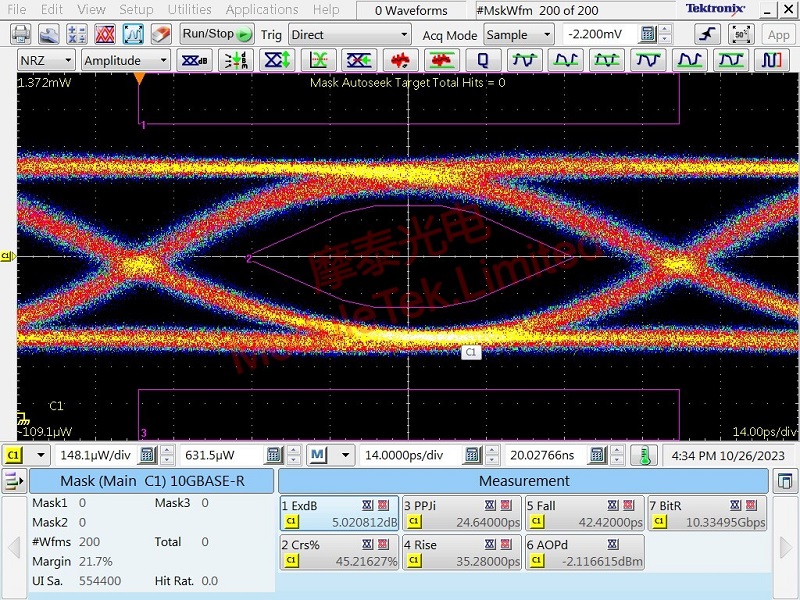

Figure 3 SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 optical module eye diagram template
Table 3 SFP-10G-BIDI-Txxxx/Rxxxx-20KM-I-D14 optical module eye diagram parameters
| Shell temperature (℃) | Extinction ratio (dB) | P-P jitter (ps) | Rise time (ps) | Down time (ps) | Margin value (%) |
| 85 | 5.02 | 24.64 | 35.28 | 42.42 | 21.7 |
From the actual test situation, the module's key parameters and indexes are in line with the definition of Moduletek 's datasheet, and are comparable with the performance of similar modules officially advertised by CISCO.
Moduletek Limited can provide SFP-10G-BIDI commercial temperature module and industrial temperature module with excellent cost performance, welcome to buy.
If you have any questions about the above content, you can contact us by Email : web@moduletek.com.
