QSFP-100G-SR4-S to view optical module information on CISCO C93180YC-EX switches

Time: 2024-05-31
         CISCO has released a QSFP-100G-SR4 optical module, model number: QSFP-100G-SR4-S, which can be used normally on CISCO C93180YC-EX switches. Today, we would like to introduce the method to view the information of this type of optical module on CISCO C93180YC-EX switches.

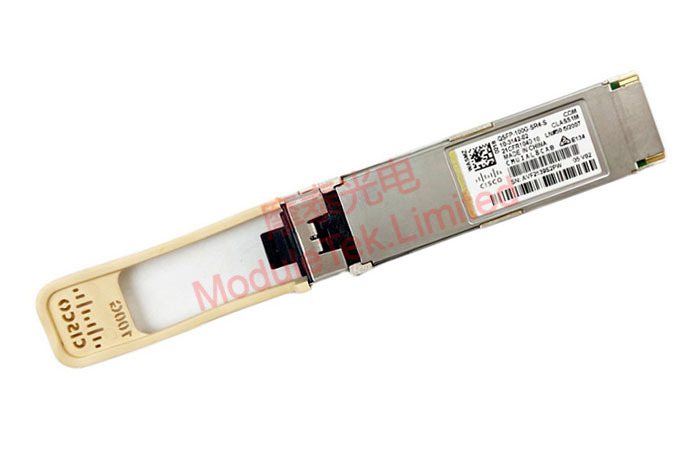

CISCO QSFP-100G-SR4-S Optical Module
Figure 1 CISCO QSFP-100G-SR4-S Optical Module

         1. Link status of CISCO QSFP-100G-SR4-S optical module on CISCO C93180YC-EX switch.
         Enter the command “show interface ethernet 1/50” to view the link information of the switch port (port number: 1/50) where the optical module is inserted, mainly including: the link status of the optical module inserted in the port, the working rate and so on.

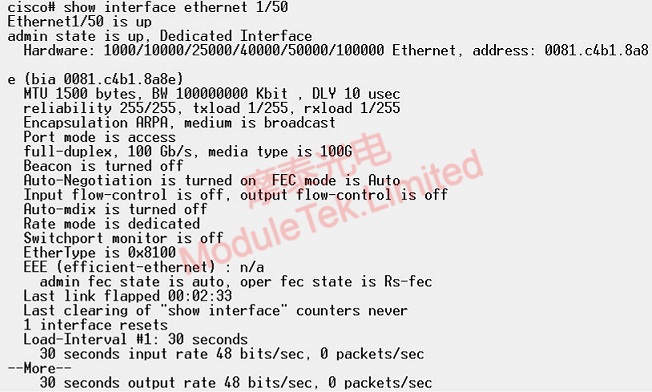

Link Status of CISCO QSFP-100G-SR4-S Optical Module on CISCO C93180YC-EX Switch
Figure 2 Link Status of CISCO QSFP-100G-SR4-S Optical Module on CISCO C93180YC-EX Switch

         2. Identification information of CISCO QSFP-100G-SR4-S optical module on CISCO C93180YC-EX switch.
         Enter the command “show interface ethernet 1/50 transceiver” to view the identification information on the switch port (port number: 1/50) where the optical module is inserted, mainly including: CISCO model number of the optical module inserted in the port, serial number, transmission distance and so on.

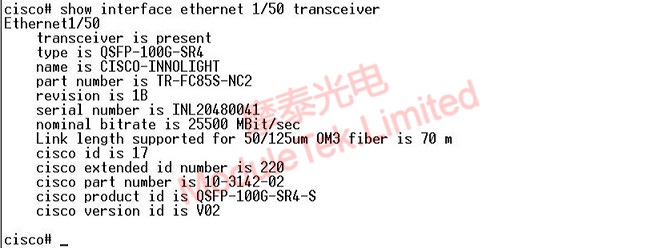

CISCO QSFP-100G-SR4-S Optical Module Identification Information on CISCO C93180YC-EX Switch
Figure 3 CISCO QSFP-100G-SR4-S Optical Module Identification Information on CISCO C93180YC-EX Switch

         3. DOM information of CISCO QSFP-100G-SR4-S optical module on CISCO C93180YC-EX switch.
         Enter the command “show interface ethernet 1/50 transceiver details” to view the DOM information on the switch port (port number: 1/50) where the optical module is plugged in, mainly including: temperature, voltage, bias current, transmit optical power, receive optical power and DOM information of the module. power, and DOM real-time value of received optical power.

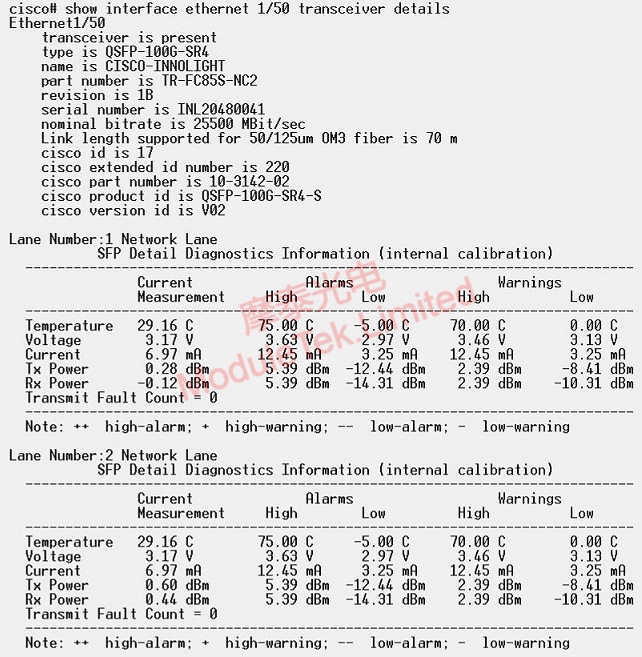

DOM information of CISCO QSFP-100G-SR4-S Optical Module on CISCO C93180YC-EX Switch
Figure 4 DOM information of CISCO QSFP-100G-SR4-S Optical Module on CISCO C93180YC-EX Switch

         Moduletek Limited can provide compatible CICSO QSFP-100G-SR4-S optical module products, welcome to buy.
         If you have any questions about the above content, you can contact us by Email : web@moduletek.com
