Huawei SFP-10GBaseT-SR Teletype Module Compatibility
Time: 2025-01-14
HUAWEI has model SFP-10GBaseT-SR electrical interface module products, support 100M/1G/2.5G/5G/10Gbps rate, Moduletek Limited Laboratory has tested the prototype of this product, to facilitate further understanding of the product's actual use of the effectiveness of the machine.
1. Product Description
Huawei SFP-10GBaseT-SR module supports 30m link length at 10G rate for Category 6 and above cables, 30m link length at 2.5G/5G for Category 5 and above cables, and 100m link length for 100M/1G. The official description and the physical appearance of the module are as follows:

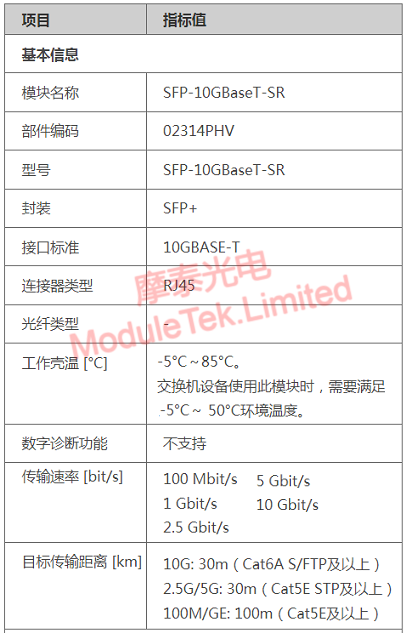

Figure 1 SFP-10GBaseT-SR Official Metrics

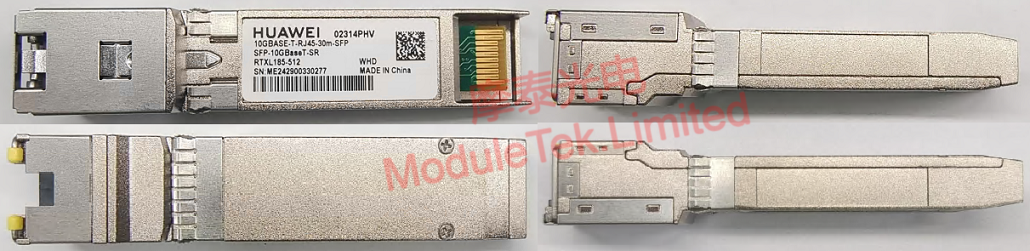

Figure 2 SFP-10GBaseT-SR physical appearance
2. Module on-boarding effect
Connect the SFP-10GBaseT-SR module to Huawei AR5710S-S8T2X switch (version:V600R023C10SPC100), use Cat6A cable, and connect the built-in RJ45 port on the opposite end of CISCO WS-C3560CX-8XPD-S switch; by modifying the interface rate on the opposite end, the module can be normal. By modifying the interface rate at the opposite end, the module can be linked at 100M/1G/2.5G/5G/10G rate and can run through the service; the module information can be recognized by the switch normally, such as the module type, vendor name, serial number, transmission distance and so on, and there is no alarm phenomenon.
Table 1 SFP-10GBaseT-SR uplink test
|
Item
|
Information read by the switch
|
|
Identify
|
|
|
LINK with ping through (10G rate)
|
|
|
LINK with ping through (5G rate）
|
|
|
LINK with ping through (2.5G rate)
|
|
|
LINK with ping through (1G rate)
|
|
|
LINK with ping through (100M rate)
|
|
3. On which devices the module is supported
Huawei does not support the SFP-10GBaseT-SR module on all of its 10Gb switches. Based on Huawei's official information, Motel Labs summarizes the following platforms that support the use of the SFP-10GBaseT-SR module.
Table 1 SFP-10GBaseT-SR Compatible Device List
|
Device Series
|
Version Requirement
|
Description
|
|
NetEngine AR6100
|
V300R023C10 and later versions
|
|
|
NetEngine AR6200
|
V300R023C10 and later versions
|
|
|
NetEngine AR6300
|
V300R023C10 and later versions
|
|
|
CloudEngine S16700
|
V600R023C and later versions
|
100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
|
|
S5700
|
V200R023C10 and later versions
|
|
|
S6700
|
V200R023C10 and later versions
|
|
|
CloudEngine S6700
|
V600R023C10 and later versions
|
100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
|
|
S620
|
V600R024C00 and later versions
|
100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
|
|
CloudEngine S8700
|
V600R024C00 and later versions
|
100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
|
|
eKitEngine AR5700S
|
V600R023C10 and later versions
|
|
|
NetEngine AR700
|
V300R023C10 and later versions
|
|
|
NetEngine AR5700
|
V600R023C10 and later versions
|
|
|
NetEngine AR6700
|
V600R023C10 and later versions
|
|
|
NetEngine AR8000
|
V600R023C10 and later versions
|
|
Note: 1. The specific supported rate is related to the interface;
2. The list of compatible devices is as of the date of publication, and new models may be added in the future, so please refer to Huawei's official website for details.
From the actual test situation, the module's performance on the switch is in line with Huawei's official claims.
Moduletek Limited is at your service.
