Huawei original electrical port module SFP-GE-T model 02314BDD test report

Time: 2024-11-27
        Huawei original electrical port module SFP-GE-T official website provides a total of four models, Moduletek Limited Laboratory on the 02314BDD model sample module testing, to facilitate a further understanding of the product's performance indicators and the effect of actual machine use.
1. Product Description
        The key parameters provided by the official information is relatively simple, as shown in the table below:
Table 1 Huawei 02314BDD sample key information
  Item   Value
  Basic Information
  Module name   SFP-1000BaseT-G2
  Part Number   02314BDD
  Model   SFP-1000BaseT-G2
  Form factor   SFP
  Application standard/Type   1000BASE-T (SFP-GE-T)
  Connector type   RJ45
  DDM options   Not Supported
  Target transmission distance [km]   0.1 km
2. Appearance photos

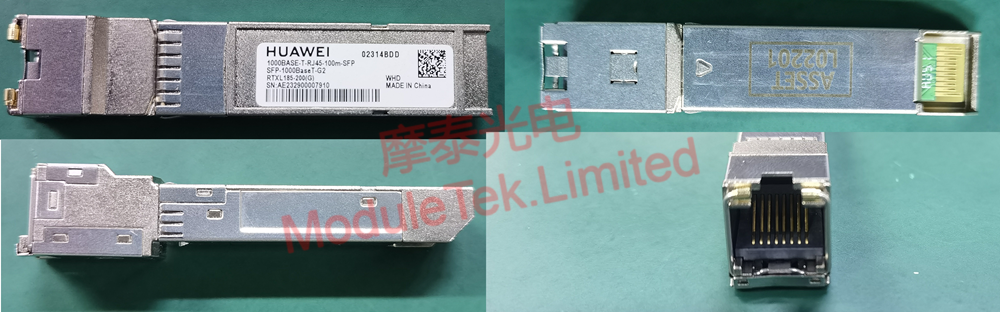

        The exterior photo of Huawei's original SFP-GE-T model 02314BDD is shown in the following figure, and you can see that its case is a sunken unlocked structure.
Physical picture of Huawei 02314BDD sample
Figure 1 Physical picture of Huawei 02314BDD sample
3. Module on-board compatibility test
        The compatibility test of Huawei's original SFP-GE-T model 02314BDD was conducted on Huawei's S5700, S5700S, S6700, and S9303 switches, and the test items included the following: on-board identification, whether it is abnormal to LINK without plugging in the cable, whether it is normal to LINK by inserting the cable, and whether it is normal to PING through test with the counterpart equipment of 1000M/100M/10M PING through the test. There are some anomalies in the testing of this model of module, as shown in the analysis of the test results.

Table 2 Compatibility test results of Huawei 02314BDD samples on S5700 and S5700S
Item
Module compatibility test results on S5700
Module compatibility test results on S5700S
Identify
LINK situation without plugging in the network cable
LINK with cable plugged in
PING test with 1000M port on the opposite end
PING test with 100M port on the opposite end
PING test with 10M port on the opposite end

Table 3 Compatibility test results of Huawei 02314BDD samples on S6700 and S9303
Item
Module compatibility test results on S6700
Module compatibility test results on S9303
Identify
LINK situation without plugging in the network cable
LINK with cable plugged in
PING test with 1000M port on the opposite end
PING test with 100M port on the opposite end
PING test with 10M port on the opposite end


4. Test result analysis
        According to the configuration of the 02314BDD sample PHY chip, it can be seen that it is a Renesas program, the initial mode is pure Gigabit, and the Los pin function is disabled.
        From its testing on the above four switches, in the S5700S and S6700 switches, the module works in pure Gigabit mode, and can only be interconnected with the opposite end of the 1000M ports; in the S5700 switches, the module works in the SGMII 3-speed adaptive mode, and can be interconnected with the opposite end of the 1000M/100M/10M ports.
        Problems include: on S5700S and S6700, the module will falsely LINK without plugging in the cable, and falsely LINK at 10M/100M rate, and cannot PING through. On the S9303, the 1000M rate cannot be pinged.
        Moduletek Limited 's Gigabit Ethernet Module SFP-GE-T-x-D50 is more compatible than Huawei's original Ethernet Module SFP-GE-T model 02314BDD, welcome to buy it.
