Huawei original electrical port module SFP-GE-T model 02313URG test report

Time: 2024-11-27
        Huawei original electrical port module SFP-GE-T official website provides a total of four models, Moduletek Limited is Laboratory on the 02313URG model sample module testing, to facilitate a further understanding of the product's performance indicators and the effect of actual machine use.
1. Product Description
        The key parameters provided by the official information is relatively simple, as shown in the table below:
Table 1 Huawei 02313URG sample key information
  Item   Value
  Basic Information
  Module name   SFP-1000BaseT
  Part Number   02313URG
  Model   SFP-1000BaseT
  Form factor   SFP
  Application standard/Type   1000BASE-T (SFP-GE-T)
  Connector type   RJ45
  DDM options   Not Supported
  Target transmission distance [km]   0.1 km
2. Appearance photos

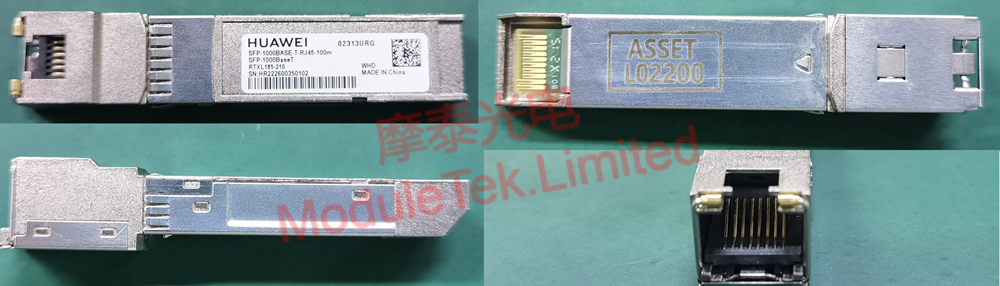

        The exterior photo of Huawei's original SFP-GE-T model 02313URG is shown in the following figure, and you can see that its case has a sunken unlocked structure.
Figure 1 Physical picture of Huawei 02313URG sample
3. Module on-board compatibility test
        The compatibility test of Huawei's original SFP-GE-T model 02313URG was conducted on Huawei's S5700, S5700S, S6700, and S9303 switches, and the test items included the following: on-board identification, whether it is abnormal to LINK without plugging in the cable, whether it is normal to LINK by inserting the cable, and whether it is normal to PING through test with the counterpart equipment of 1000M/100M/10M. PING through test. After testing, each test item passes on all devices.
Table 2 Compatibility test results of Huawei 02313URG samples on S5700 and S5700S
Item
Compatibility test results of the module on S5700
Module compatibility test results on S5700S
Identify
LINK case without plugging in the network cable
LINK with cable plugged in
PING test with 1000M port at the opposite end
PING test with 100M port at the opposite end
PING test with 10M port at the opposite end


Table 3 Compatibility test results of Huawei 02313URG samples on S6700 and S9303
Item
Module compatibility test results on S6700
Module compatibility test results on S9303
Identify
LINK case without plugging in the network cable
LINK with cable plugged in
PING test with 1000M port at the opposite end
PING test with 100M port at the opposite end
PING test with 10M port at the opposite end


4. Analysis of test results
        According to the 02313URG sample PHY chip register configuration, it can be seen that its initial mode is pure Gigabit and the Los pin is enabled.
        According to its testing on the above four switches, on S5700S and S6700 switches, the module works in pure Gigabit mode and can only interconnect with 1000M ports on the opposite end; on S5700 and S9303 switches, the module works in SGMII 3-speed adaptive mode and can interconnect with 1000M/100M/10M ports on the opposite end.
        Moduletek Limited iss Gigabit Ethernet Module SFP-GE-T-x-D12 mode is fully compatible with Huawei's original Ethernet Module SFP-GE-T model 02313URG, welcome to buy it.
        Moduletek Limited is at your service.
