首页 > Home > Application Notes > Huawei original electrical port module SFP-GE-T model 02313GCE test reportHuawei original electrical port module SFP-GE-T model 02313GCE test report
Time: 2024-11-25
Huawei original electrical port module SFP-GE-T official website provides a total of four models, of Moduletek Limited Laboratory on the 02313GCE model sample module testing, to facilitate a further understanding of the product's performance indicators and the effect of actual machine use.
1. Product Description
The key parameters provided by the official information is relatively simple, as shown in the table below:
Table 1 Huawei 02313GCE sample key information
| Item | Value |
| Basic Information | |
| Module name | SFP-1000BaseT-MP |
| Part Number | 02313GCE |
| Model | SFP-1000BaseT-MP |
| Form factor | SFP |
| Application standard/Type | 1000BASE-T (SFP-GE-T) |
| Connector type | RJ45 |
| DDM options | Not Supported |
| Target transmission distance [km] | 0.1 km |
2. Appearance photos

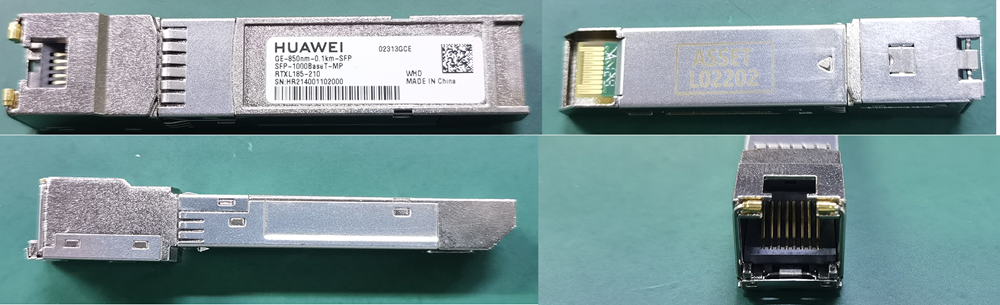

The exterior photo of Huawei's original SFP-GE-T model 02313GCE is shown in the following figure, and you can see that its case has a sunken unlocked structure.
Figure 1 Physical picture of Huawei 02313GCE sample
3. Module on-board compatibility test
Huawei's original electrical port module SFP-GE-T model 02313GCE samples were tested on Huawei's S5700, S5700S, S6700, and S9303 switches for compatibility testing, and the test items include: on-board identification, whether it is anomalous to LINK without inserting a cable, whether it is normal to LINK by inserting a cable, and whether it is normal to PING through testing with the counterpart equipment of 1000M/100M/10M. PING through test. After testing, each test item passes on all devices.
Table 2 Compatibility test results of Huawei 02313GCE samples on S5700 and S5700S
|
Item
|
Module compatibility test results on S5700
|
Module compatibility test results on S5700S
|
|
Recognition
|
 |
 |
|
LINK without plugging in the network cable
|
 |
 |
|
LINK with cable plugged in
|
 |
 |
|
PING test with 1000M port on the opposite side
|
 |
 |
|
PING test with 100M port on the opposite side
|
 |
 |
|
PING test with 10M port on the opposite side
|
 |
 |
Table 3 Compatibility test results of Huawei 02313GCE samples on S6700 and S9303
|
Item
|
Module compatibility test results on S6700
|
Module compatibility test results on S9303
|
|
Recognition
|
 |
 |
|
LINK case without plugging in the network cable
|
 |
 |
|
LINK with cable plugged in
|
 |
 |
|
PING test with 1000M port on the opposite end
|
 |
 |
|
PING test with 100M port on the opposite end
|
 |
 |
|
PING test with 10M port on the opposite end
|
 |
 |
4. Analysis of test results
According to the configuration of the 02313GCE sample PHY chip, its initial mode is pure Gigabit with the Los pin enabled.
From its test on the above four switches, in S5700S and S6700 switches, the module works in pure Gigabit mode and can only interconnect with 1000M ports on the opposite end; in S5700 and S9303 switches, the module works in SGMII 3-speed adaptive mode and can interconnect with 1000M/100M/10M ports on the opposite end.
Moduletek Limited's Gigabit Ethernet Module SFP-GE-T-x-D12 mode is fully compatible with Huawei's original Ethernet Module SFP-GE-T model 02313GCE, welcome to buy.
Moduletek Limited is at your service.
