Moduletek Limited SFP-10G-LR-10KM-C-H15 Optical Module Sample Performance Evaluation

Time: 2024-11-12
        Moduletek Limited newly launched model SFP-10G-LR-10KM-C-H15 optical module products, can support 10G Ethernet transmission 10km in single-mode fiber, Moduletek Limited Labs on the product samples for testing, to facilitate a further understanding of the product's performance indicators and the effect of the actual machine use.
1. Product Description
        SFP-10G-LR-10KM-C-H15 optical module supports 10km link length on 10G Standard Single Mode Fiber (SMF) G.652, supports commercial temperature range (0~70℃), official ordering information and module appearance are as follows:
SFP-10G-LR-10KM-C-H15 Optical Module Official Ordering Information
Figure 1 SFP-10G-LR-10KM-C-H15 Optical Module Official Ordering Information

SFP-10G-LR-10KM-C-H15 Optical Module Physical Appearance
Figure 2 SFP-10G-LR-10KM-C-H15 Optical Module Physical Appearance
2. Module identification
        SFP-10G-LR-10KM-C-H15 module is connected to CISCO C9500-24Y4C switch, the module can be normally LINK, the port indicator is on; module information can be normally recognized by the switch, such as the module type, vendor name, model number, serial number, rate, transmission distance, etc.; you can read the DOM data, and DOM data are within the threshold range, no alarm phenomenon. No alarm phenomenon.
Table 1 SFP-10G-LR-10KM-C-H15 Optical Module Upload Recognition
Item  Switch reading information
LINK

Identify

DOM data


3. Module key parameters testing
        Three-temperature tests are conducted on the performance indicators of the SFP-10G-LR-10KM-C-H15 sample module on the test board, and the test results are as follows;
Table 2 Key parameters of SFP-10G-LR-10KM-C-H15 optical module
Shell test temperature
(℃)		 Transmit optical power
(dBm)		 Receive sensitivity
(dBm, BER=1E-12)		 Power Consumption
(W)
0 -1.9 -16.5 0.65
30 -2.2 -16.0 0.76
70 -2.4 -15.0 0.88

        The sample module enclosure was tested at 70°C optical eye diagram with the following eye diagram template and parameters:

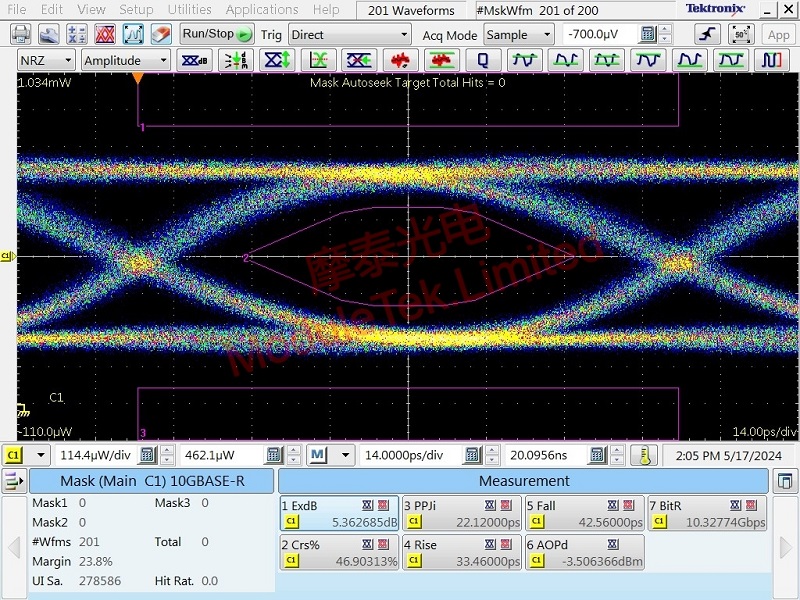

SFP-10G-LR-10KM-C-H15 optical module eye diagram template
Figure 3 SFP-10G-LR-10KM-C-H15 optical module eye diagram template

Table 3 SFP-10G-LR-10KM-C-H15 optical module eye diagram parameters
Shell temperature
(℃)		 Extinction ratio
(dB)		 P-P jitter
(ps)		 Rise time
(ps)		 Down time
(ps)		 Margin value
(%)
70 5.36 22.12 33.46 42.56 23.8

        From the actual test situation, the module's key parameters and indexes are in line with the definition of Motech's datasheet, and are comparable with the performance of similar modules officially advertised by CISCO.
        Moduletek Limited can provide SFP-10G-LR commercial temperature module and industrial temperature module with excellent cost performance, welcome to buy!
        If you have any questions about the above content, you can contact us by Email : web@moduletek.com.
