H3C QSFP-100G-LR4-WDM1300 Optical Module sample report

Time: 2024-01-03
        H3C has model QSFP-100G-LR4-WDM1300 optical module products, which can support 100G Ethernet transmission of 10KM in single-mode fiber, Moduletek Laboratory has tested the sample of this product, which is convenient for you to know more about the product's performance indexes and the effect of actual machine use.
1. Product Description
        H3C QSFP-100G-LR4-WDM1300 Optical Module supports 10KM link length on 100G standard single-mode fiber (SMF) G.652, and supports commercial temperature range (0~70℃); the official key parameter information and physical appearance of the module are as follows:
Table 1 H3C QSFP-100G-LR4-WDM1300 optical module key parameters
External Model Center
Wavelength (nm )
Fiber Mode
Fiber Diameterb(um)
Transmission Distance
Interface Index (dBm)
Output Optical Power (AVG )
Received Optical Power (AVG )
QSFP -100G-LR4-WDM1300
Four channels：
1295.56
1300.05
1304.58
1309.14
SMF
9/125
10km
4.3~+4.5
10.6~+4.5

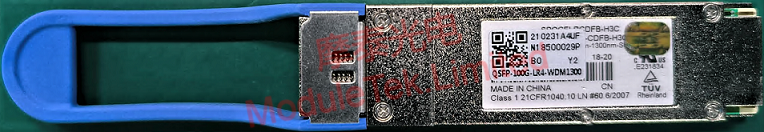

H3C QSFP-100G-LR4-WDM1300 Optical Module Physical Appearance
Figure 1 H3C QSFP-100G-LR4-WDM1300 Optical Module Physical Appearance
2. Module identification
        Connect the QSFP-100G-LR4-WDM1300 module to the H3C S6850-56HF switch, the module can be LINKed normally and the port indicator lights up; the module information can be recognized by the switch normally, such as the module type, vendor name, model number, serial number, rate, transmission distance, etc.; the DOM data can be read, and the DOM data is within the threshold range, and there is no alarm phenomenon. There is no alarm phenomenon.
Table 2 H3C QSFP-100G-LR4-WDM1300 Optical Module Upload Recognition Results
Item
 Switch reading information
LINK
Identify
DOM Data
3. Module Key Parameter Test
        The performance indexes of the QSFP-100G-LR4-WDM1300 sample module on the test board are tested under the condition of 45°C in the laboratory module enclosure, and the test results are as follows;
Table 3 H3C QSFP-100G-LR4-WDM1300 optical module performance index test results
  Parameter
Channel 1
Channel 2
Channel 3
Channel 4
Remarks
  Transmit optical power
0.56dBm
1.44dBm
1.37dBm
1.28dBm

  Receiving sensitivity (without fiber)
-13.12dBm
-13.32dBm
-13.25dBm
-13dBm
0 BER
  Receive sensitivity (over 10km fiber)
-13.17dBm
-13.2dBm
-13.7dBm
-12.95dBm
0BER
  Power consumption
2.795W
        The sample module enclosure was tested at 45°C optical eye diagram with the following eye diagram template and parameters:
Table 4 H3C QSFP-100G-LR4-WDM1300 Optical Module Eye Diagrams

Eye diagram

Eye diagram
Channel 1
Channel 3
Channel 2
Channel 4

Table 5 H3C QSFP-100G-LR4-WDM1300 optical module eye diagram parameters
  Parameter
Channel 1
Channel 2
Channel 3
Channel 4
  Temperature (℃)
45
45
45
45
  Extinction ratio (dB)
8.23
6.79
7.68
8
  P-P jitter (ps)
11.57
10.38
9.96
8.78
  Rise Time (ps)
18.11
18.45
18.47
18.18
  Downtime (ps)
17.17
16.99
16.71
17.55
  Margin value (%)
27.7
22
27.9
31.9
        From the actual test situation, the module's key parameters and indexes are in line with H3C's official claims.
        Moduletek Limited is at your service.
        If you have any questions about the above content, please contact us via email: sales@moduletek.com
